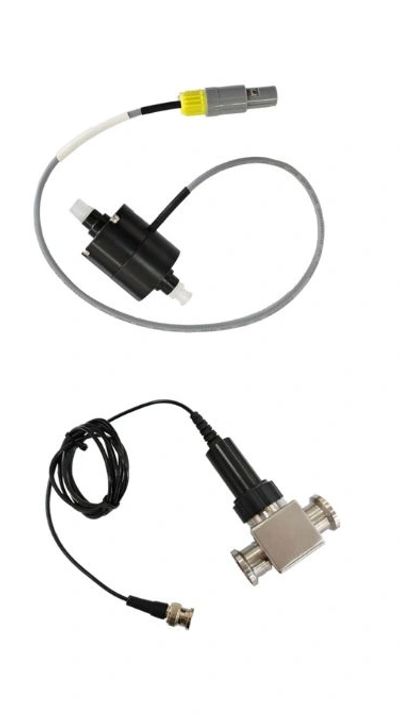

pH/Conductivity Detector
pH
pH detection range: 0-14 (compensated for temperature)
pH detection precision: ±0.1 (25℃)
Conductivity
Conductivity detection range: 0-999.999 mS/cm
Conductivity detection precision: ±2% (25℃)
Temperature detection range: 0-99 ℃
Temperature detection precision: ±0.5 ℃
ID: 1mm / 1.6mm / 3.2mm / 6.4mm
Connectiion:
◎UNF 10–32 2B ”Fingertights” with capillary tubing 1/16" OD
◎1/4-28UNF for 1/8 or 1/16 OD tubing
◎5/16-24UNF for 3/16 OD tubing
◎1/2-20UNF for 1/4 OD tubing
Applications
- Fast protein chromatography system
- Bioprocess chromatography
- Ion chromatography
Features
- Low dead volume
- Wide range applications
- Biocompatibility
Circuit Board
Circuit Board Specifications
Input voltage: 12 - 24 VDC
Working Amp: 100 - 150 mA
PCB: 94.5 mm × 76 mm
Whole board: 123.5 mm × 76 mm
Communication
RS485, RS232; can be modified
Applications
- Fast protein chromatography system
- Bioprocess chromatography
- Ion chromatography
Features
- Low dead volume
- Wide range applications
- Biocompatibility
pH Detector
Key Features
- pH detection range: 0-14 (compensated for temperature)
- pH detection precision: ±0.1 (25℃)
- Integrated temperature compensation.
- The size of the flow cell can be customized.
- Communication Interface: RS232/RS485, TC25 for φ 12.7.
Conductivity Detector
Key Features
- Conductivity detection range: 0-999.999 mS/cm
- Conductivity detection precision: ±2% (25℃)
- Temperature detection range: 0-99 ℃
- Temperature detection precision: ±0.5 ℃
- ID: 1mm / 1.6mm / 3.2mm / 6.4mm
- Connections: Thread 1/4-28UNF.
- Integrated temperature compensation.
- The size of the flow cell can be customized.
- Communication Interface: RS232/RS485, TC25 for φ 12.7.
